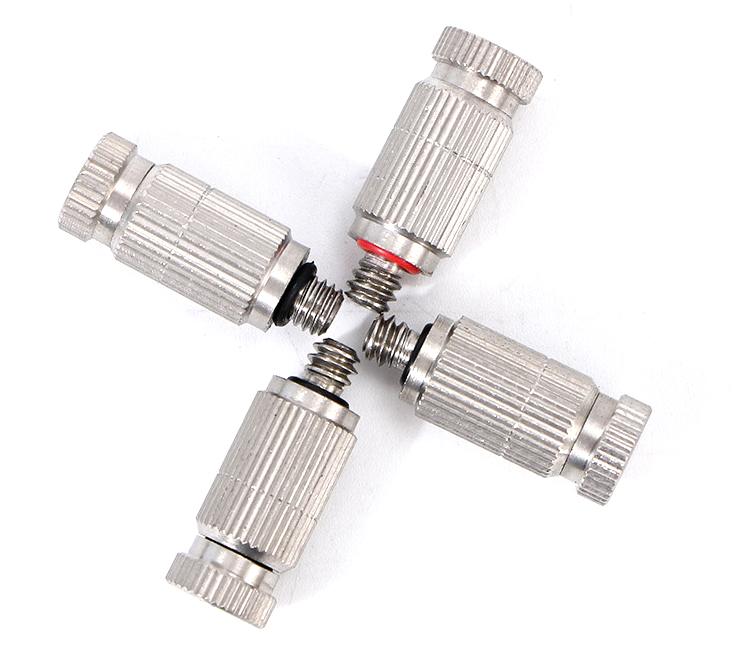

Item: High pressure misting nozzle
Model No.:RDP-NSHSL01
Thread: 10/24″ UNC
Material: #303 Stainless Steel material body
Description：Stainless steel material high pressure system nozzle, cleanable anti-drip system inside. The anti drip system inside prevent the leakage when shut off the system.
Provide perfect spray pattern and produces droplets typically between 10–100 microns.
Recommended pressure: For Mid to high pressure misting system(250-1500 psi)
Thread size：10/24”unc, 12/24” unc,
Orifice size: 0.10mm to 0.80mm
Full cone pattern spray 60-70 degrees
